Hikvision DS-2CD2545FWD-I 4MP Mini Dome Network Camera

Out of Stock
SKU
DS-2CD2545FWD-I

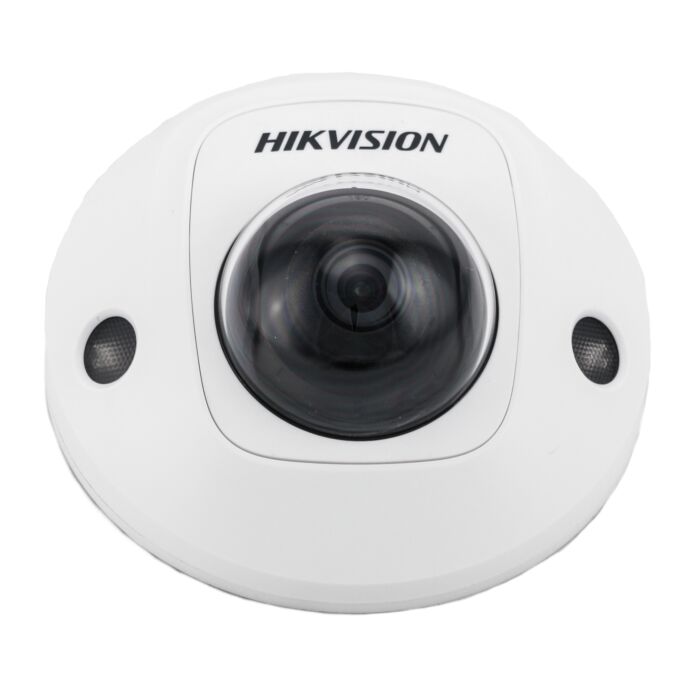

The DS-2CD2545FWD-I is a 4MP (2688 x 1520) mini dome camera. It is the most compact of all of Hikvision's cameras with a total diameter of 110mm making it a great choice for discreet applications. It also has built in infra-red LEDs that reach a maximum distance of 10m meaning it can be used in applications where a camera is needed near a front door without making the person/object of interest appear white out - This can happen with infra-red that is more powerful. This camera comes fitted with IK08 vandal resistant housing, IP66 weatherproof housing and a lens which can be adjusted on 3-axes. The DS-2CD2545FWD-I uses wide dynamic range (WDR) , 3D digital noise reduction (3D DNR) and back light compensation (BLC) to ensure that the best possible image is always captured. On top of these features, the DS-2CD2545FWD-I utilises smart features such as motion detection. intrusion detection and line crossing detection to further improve security. H.265+ reduces and bandwidth and storage usage up to 70% when compared to H.264 so the on board SD card slot can be used without reaching maximum capacity so quickly. This camera can be powered with either a 12VDC power supply or PoE and can be accessed remotely through a browser or via the Hik-Connect app.

DarkFighter


PLEASE NOTE: This product may not be available for next working day delivery. Contact us for stock levels.

Hikvision Product CatalogueHikvision Quick GuideUser ManualMini Dome Quick Start Manual


Product Datasheets

Hikvision DS-2CD2545FWD-I 4MP Mini Dome Network Camera Datasheet (1.19MB)


G1 Family Badge


Features


For information on Lux Levels please look here.


Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect



Frequently bought together

  1. Hikvision DS-2CD2545FWD-I 4MP Mini Dome Network Camera
  2. +
  3. HIKV12VDC 12V DC PSU for Hikvision Cameras
  4. +
  5. Hikvision DS-1280ZJ-DM46 Junction Box
  6. +
  7. Samsung EVO Plus 128GB MicroSDXC Card with Adapter MB-MC128HA/EU
  8. +
  9. Level One POI-2002 Single Port POE Injector
Total price: £0.00INCL VAT
Ex Vat: £0.00
  • This item: Hikvision DS-2CD2545FWD-I 4MP Mini Dome Network Camera £0.00 Out of stock

- 4MP resolution - 2688 x 1520 - Max. 25 fps - H.265+/H.265 support - 120dB WDR - Built in Micro SD/SDHC/SDXC card slot, supports up to 128GB - 10m EXIR IR - IP66 rated weatherproof housing - IK08 vandal resistant housing
DS-2CD2535FWD-I Dimensions
2.8mm - Horizontal field of view: 109° 4mm - Horizontal field of view: 88° 6mm - Horizontal field of view: 53° 12mm - N/A°
Focal Length Diagram

For help on figuring out which focal length is best for you please see here.

Specs
Image chip size 1/2.5"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 2688 X 1520
Min. low-light lux 0 Lux (IR LED ON)
Lens Mount M12 mount
Aspect ratio 16:9
Megapixels 4 MP
Supplied with lens Yes
Accepts auto-iris lens No
IR Range Up to 10m
Max. Images per second 25
PSU included No
ONVIF Compatible Yes
Power Consumption max. 10W
Warranty 3 Years
Launch Date Autumn 2018
