Hikvision DS-7604NI-K1-4P(B) | 4 Channel Network Video Recorder

In Stock
SKU
DS-7604NI-K1-4P(B)
Rating:
96 % of 100

The Hikvision DS-7604NI-K1/4P is a 4 channel network video recorder that can support up to 8MP IP cameras. This NVR has 4 built in PoE ports to make set up simple and easy.

With a space for one hard drive, the DS-7604NI-K1/4P has a maximum storage capacity of 10TB and can support H.265 cameras to put less stress on storage and bandwidth usage.

There is an HDMI and VGA port that allows one monitor to be connected, however, the NVR can also be accessed remotely via Hik-Connect or a browser.

The DS-7604NI-K1/4P includes a power supply and a mouse.

This NVR will accept any capacity hard drive (HDD) currently available. Any maximum capacity stated on the manufacturer’s documents is simply based upon the maximum HDD size that was available at the time of release/publication


New (B) models now support H.265+

Max. HDD Support - 10TB (1x SATA Drive).
Max. Supported IP Cameras - 4
Max. Megabits Per Second - 40Mbps


Please note that Hikvision NVRs are supplied without hard drives. We recommend the WD Purple Series HDD for this product.

Please note - for Hikvision's Automatic Number Plate Recognition Cameras (ANPR) it is recommended to use the -I Series NVR's.


Hikvision NVR User Manual Hikvision NVR Quick Start Guide Hikvision Product Catalogue Hikvision Quick Guide


Product Datasheets

Hikvision DS-7604NI-K1-4P(B) | 4 Channel Network Video Recorder Datasheet (0.83MB)

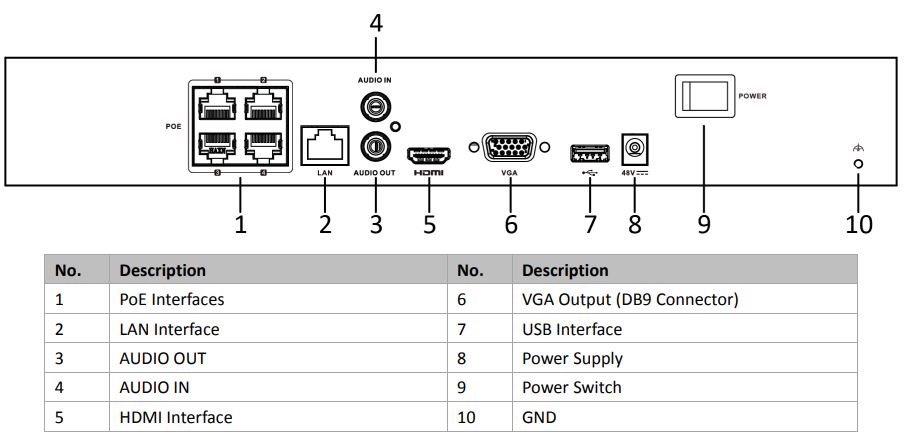

7604 interfaces


Breaking News Friday 10th November: HikVision have released a significant V4 firmware update for -I NVRs. It is not yet clear whether -K NVRs will also receive this update. For further information & updates please click here.

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect



Frequently bought together

  1. Hikvision DS-7604NI-K1-4P(B) | 4 Channel Network Video Recorder
  2. +
  3. WD Purple 4TB SATA 6 Gb/s NAS Hard Drive WD40PURX
Total price: £0.00INCL VAT
Ex Vat: £0.00

- 4 Channel PoE IP Camera Ports
- Support for up to 8MP recording and playback
- Support for 4k video output
- H.264/H.264+/H.265 video codecs
- 1 SATA interface to connect 1 x 10TB hard drive
- Support for VCA detection alarm
- Compatible with third-party IP cameras


Hikvision DS-7604NI-K1-4P | 4 Channel Network Video Recorder

Specs
Number of Channels 4
Synchronous Playback 4-ch
Number of PoE Ports 4
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 80 Mbps
Number of Bays 1
Audio Input 1-ch
Audio Ouput 1-ch
Front USB 1 x USB 2.0
Rear USB 1 x USB 2.0
Fan No
RAID No
ANR (Automatic Network Recover) No
HDD Capacity Supplied 0GB (Hard Disk Drives sold seperately to demand)
Maximum Memory Capacity 12TB
Chassis 1U
Dimensions 315 x 240 x 48mm
Warranty 3 Years
Launch Date August 2016
Write Your Own Review
You're reviewing:Hikvision DS-7604NI-K1-4P(B) | 4 Channel Network Video Recorder
Your Rating
Customer Questions
What is the safe ambient temperature range over which this recorder can be run? I want to place it in a loft space. Temperatures are likely to range from 0 - 42 degrees centigrade...I think!

Hi Kenneth, The datasheet for this model states a working temperature of "-10°C to +55°C (14 to 131°F) and a working humidity of 10 to 90%. However, do keep in mind that a dusty environment can be detrimental to the NVR and hard drive's lifespan...

Hi, you say that this unit doesn't support H265+ but the Hikvision website says it does. Can you confirm either way, please?

Hi, the 7604 4-channel NVR does not support H.265+, it says this on our product page and on the Hikvision UK website. The larger -K and -I NVRs (e.g. 7608-I2, 7616-K2, etc...) do support H.265+.

Sorry another question about 265+ , on the product page it states “ New (B) models now support H.265+ “ does that mean that you now sell these “B” models ? Thanks

Hi, all our 7604 stock is now the new (B) model, we only added this comment because originally when they first introduced the (B) model we were getting some with the (B) and some without so we had to make people aware of the difference, but now the (...

Hi does the DS7604N1-K1 support IR remote control as opposed to using a mouse to access the menu Regards Stewart

Yes, you can use a remote control with the 7604 NVR.

Hi which external cameras do you recommend to use with this mounted in the eaves of house?

Hi, Our GoTo camera for such applications would be the turret cameras. Just search 'turret' at the top of any page in the webshop. The model with current best price/performance would be the 2383, followed by 2363, 2343, 2323.

This NVR model no can support to wifi based cameras, if yes so which cameras are support it?
How many 4 mega pixel cameras can this cope with, the description says it handles up to 8Mp but not 4 X 8Mp ?

The 7604(B) is a 4-channel NVR which can record 4 cameras at up to 8MP resolution, the important technical detail to be aware of is the decoding capability of the NVR which is how many cameras the NVRs can live view/playback at the same time. If you ...
