164.40

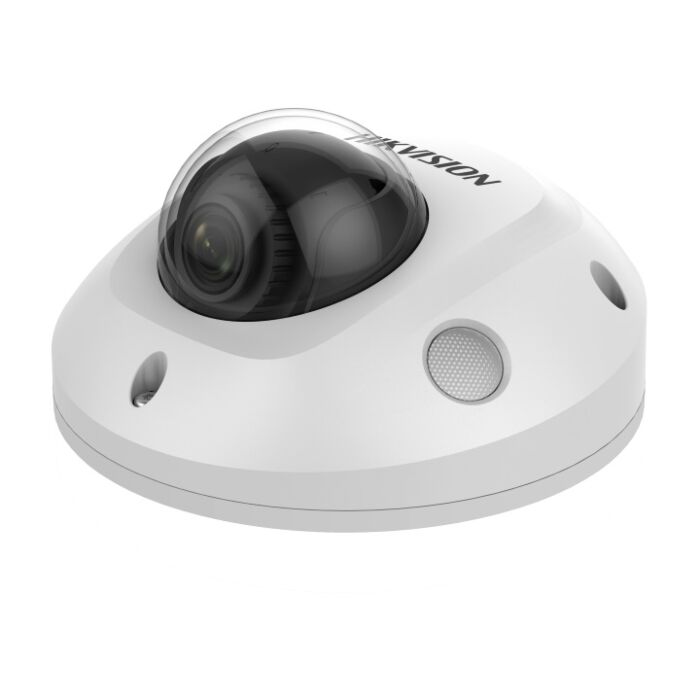

Hikvision DS-2CD2535FWD-IS | 4mm 3MP Mini Dome Network Camera

Availability: In stock

Hikvision DS-2CD2535FWD-IS-4

Make an Offer

If you would prefer to negotiate a lower price for this item with us, please enter your offer below. We'll then connect you to our Live Chat team who will review your offer as quickly as possible.

We like this because… This camera is an upgrade from the hugely popular 2542 camera utilising H.265+ and vandal resistant housing!

Quick Overview

The DS-2CD2535FWD-IS is a 3MP (2048 x 1536) mini dome camera with a 2.8mm fixed lens. It is the most compact of all of Hikvision's cameras with a total diameter of 110mm making it a great choice for discreet applications. It also has built in infra-red LEDs that reach a maximum distance of 10m meaning it can be used in applications where a camera is needed near a front door without making the person/object of interest appear white out - This can happen with infra-red that is more powerful.

This camera comes fitted with IK08 vandal resistant housing, IP66 weatherproof housing and a lens which can be adjusted on 3-axes. The DS-2CD2535FWD-IS uses wide dynamic range (WDR) , 3D digital noise reduction (3D DNR) and back light compensation (BLC) to ensure that the best possible image is always captured. On top of these features, the DS-2CD2535FWD-IS utilises smart features such as motion detection. intrusion detection and line crossing detection to further improve security. This camera also comes with with a built-in microphone.

H.265+ reduces and bandwidth and storage usage up to 70% when compared to H.264 so the on board SD card slot can be used without reaching maximum capacity so quickly.

This camera can be powered with either a 12VDC power supply or PoE and can be accessed remotely through a browser or via the Hik-Connect app.

Hikvision DS-2CD2535FWD-I key features banner


Hikvision Product CatalogueHikvision Quick GuideUser ManualMini Dome Quick Start Manual

Product Datasheets

Hikvision DS-2CD2535FWD-IS | 4mm 3MP Mini Dome Network Camera Datasheet (0.86MB)


G1 Family Badge


Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera


Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Frequently bought together

+
+
+
+

Key Features

- 3MP resolution
- 2048 x 1536
- Max. 30 fps
- Built-in microphone
- H.265+/H.265 support
- 120dB WDR
- Built in Micro SD/SDHC/SDXC card slot, supports up to 128GB
- 10m EXIR IR
- IP66 rated weatherproof housing
- IK08 housing
DS-2CD2535FWD-I Dimensions
2.8mm - Horizontal field of view: 98°
4mm - Horizontal field of view: 78°

Focal Length Diagram

For help on figuring out which focal length is best for you please see here.


Lux Levels - For more information on Lux Levels please look here.

Lux levels


Hikvision IP Camera Codes
Hikvision IP Camera Codes

Additional Information

Weight 400.0000
Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.265+/H.265/H.264+/H.264
Audio Built-in microphone
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 3 (6.49-12.95W)
Max. Resolution 2048 X 1536
Min. low-light lux 0 Lux (IR LED ON)
Lens Mount M12 mount
Lens Focal Length 4mm
Aspect ratio 4:3
Megapixels 3 MP
Supplied with lens Yes
IR Range Up to 10m
Max. Images per second 30
ONVIF Compatible Yes
Power Consumption max.7.5W
Warranty 3 Years
Launch Date Spring 2018
Focal Length 4mm
