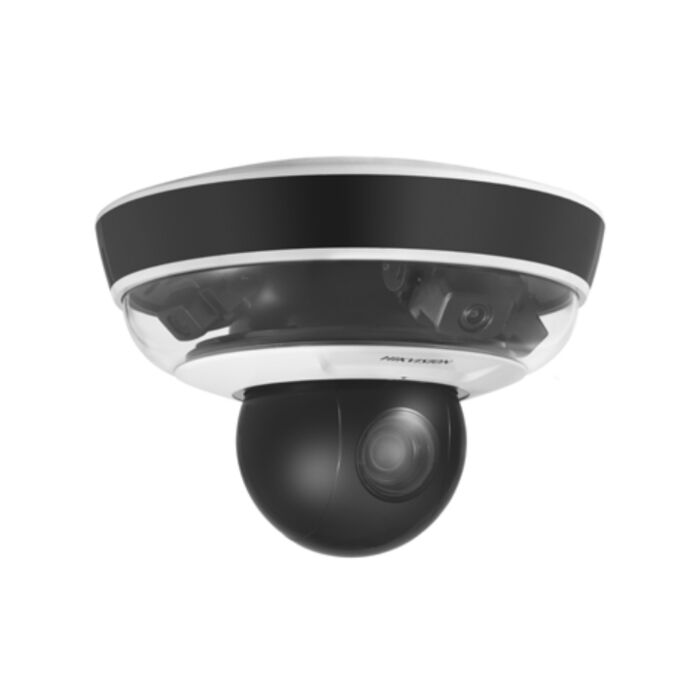

Hikvision DS-2PT5326IZ-DE PanoVu Mini Series IR Network PTZ Camera

Contact Us for Stock Levels
SKU
DS-2PT5326IZ-DE

DS-2PT5326IZ-DE Key Features

240° Image and Close Up Images

3 Channel Panoramic Images In 3 Different Directions

1 Channel Close-Up Image

Three Flexible Cameras Adjustable Along A Circular Track

Three Flexible Cameras Can Tilt Rotate From 15° to 55°

PTZ Linkage

Built-In Memory Card Slot

Panoramic Camera: 30m IR Radius

PTZ Camera: 50m IR Distance

10x Optical Zoom (PTZ Camera Only)




Hikvision Product Catalogue Hikvision Network Camera User Manual Hikvision Hikvision DS-2PT5326IZ-DE S Quick Start Guide

Product Datasheets

Hikvision DS-2PT5326IZ-DE PanoVu Mini Series IR Network PTZ Camera Datasheet (0.80MB)

Find use-IP on Youtube   Find out more at the use-IP forum   Find the correct firmware for your camera



Useful Hikvision Tools

- SADP Download
- IE Tab Download
- Hik-Connect


Frequently bought together

  1. Hikvision DS-2PT5326IZ-DE PanoVu Mini Series IR Network PTZ Camera
  2. +
  3. Hikvision DS-1602ZJ Wall Mount Bracket
  4. +
  5. Hikvision DS-7608NI-I2-8P 8 Channel Network Video Recorder
  6. +
  7. WD Purple 8TB SATA 6 Gb/s NAS Hard Drive WD80PUZX
  8. +
  9. XeLAN Cat6 UTP Patch Lead 5m - Grey 4001-0004
Total price: £0.00INCL VAT
Ex Vat: £0.00

The Hikvision DS-2PT5326IZ-DE is part of the PanoVu mini series of network cameras. It provides both a panoramic channel which offers a coverage of 240° as well as a PTZ channel to further monitor objects of interest independant of the panoramic channel.

Panoramic Camera

The top of the DS-2PT5326IZ-DE sits three lenses with 1/2.8" image sensors and 4mm focal lengths. These sit on a circular track along the diameter of the camera. Users can position each camera to tailor their own surveillance requirements. They can also be tilted from 15° to 55°.

Each lens provides a horizontal field of view of 80.7° and whilst the camera features built in IR supplement lighting which can reach up to 30m radius.

PTZ Camera

The PTZ camera makes up the bottom half of the DS-2PT5326IZ-DE, allowing users to zoom in to objects of interest, seperate from the Panoramic image that the camera is also providing. The DS-2PT5326IZ-DE features 10 x optical zoom and a 50m IR Range.

Specs
Image chip size 1/2.8"
Image chip type Progressive Scan CMOS
Image Compression H.265/H.264
Audio Audio I/O
Auto-Focus Yes
Indoor / Outdoor Indoors or Outdoors
Ingress Protection IP66
Colour / monochrome True Day/Night
POE built-in Yes
POE Class Class 4 (12.95 - 25.50)
Max. Resolution 1920 X 1080
Min. low-light lux 0.005
Supply Volts 12V DC or PoE+
Lens Mount Dual: Fixed and Varifocal
Viewing Angle Horizontal Field of View: Fixed 80.7° x3 PTZ: 58.6° - 6.4°
Aspect ratio 16:9
Supplied with lens Yes
IR Range Up to 50m
Max. Images per second 50
PSU included No
ONVIF Compatible Yes
Power Consumption max. 9W
Warranty 3 Years
Launch Date July 2021
